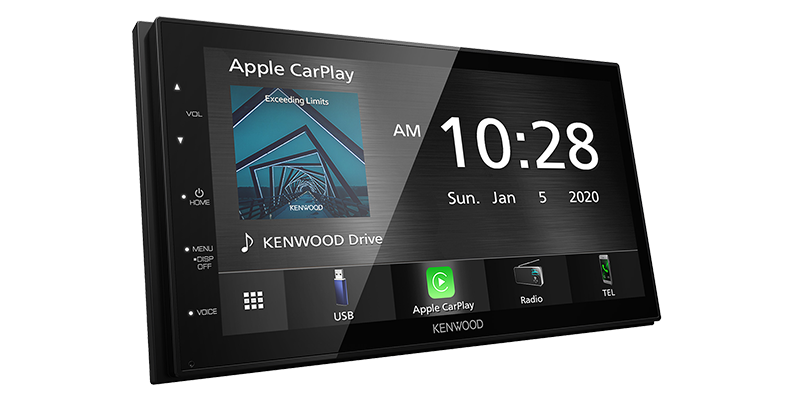

Monitor Section | Picture size | 6.75inches(diagonal) wide |
W x H | 151.8 x 79.7mm |
Display system | Transparent TN LCD panel |
Drive system | TFT active matrix system |
Number of pixels | 1,152,000 |
800H x 480V x RGB |
Effective pixels | 99.99% |
Pixel arrangement | RGB striped arrangement |
Back lighting | LED |
USB I/F Section | USB Standard | USB2.0 High Speed |
File System | FAT 16/32 , exFAT |
Maximum Power Supply Current | DC5V=1.5A |
D/A Converter | 24Bit |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / .mkv |
Frequency response | 192k Sampling | 20 - 20,000 Hz |
96k Sampling | 20 - 20,000 Hz |
48k Sampling | 20 - 20,000 Hz |
44.1k Sampling | 20 - 20,000 Hz |
Total harmonic distortion 1kHz | 0.2 |
Signal to Noise ratio | 75dB |
Dynamic range | 75dB |
Bluetooth Section | Technology | Bluetooth Ver4.1 |
Frequency | 2.402 – 2.480 GHz |
RF Output Power (E.I.R.P.) | +8dBm (Avg.), Power Class 1 |
Maximum Communication range | Line of sight approx.10m(32.8ft) |
Audio Codec | SBC / AAC |
Multi Profile Support | Multi Profile |
Profile | HFP (V1.6) (Hands Free Profile) |
SPP (Serial Port Profile) |
A2DP (Advanced Audio Distribution Profile) |
AVRCP (V1.5) (Audio/Video Remote Control Profile) |
PBAP (Phonebook Access Profile) |
DSP Section | Graphics equalizer |
BAND | 13 Band |
frequency (Hz) (BAND1-13) | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k |
Gain | -09 to +09 (-9dB to +9dB) |
2Way X'Over |
HIGH PASS FILTER frequency (Hz) | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 |
SLOPE | -6/ -12/ -18/ -24 dB/Oct. |
Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
LOW PASS FILTER frequency (Hz) | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through |
SLOPE | -6/ -12/ -18/ -24 dB/Oct. |
Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB |
Position |
Front / Rear /Subwoofer Delay | 0 to 6.1m (0.01m Step) |
Gain | -8 to 0dB |
Subwoofer Level | -40 to +6dB |
FM | Frequency Range | 87.5 - 108.0 MHz |
(Frequency step) | (50kHz) |
Usable sensitivity | 16.2dBf |
S/N:30dB | 1.8μV/75 Ohms |
Quieting sensitivity | - |
DIN S/N 46dB | - |
Frequency response | 30Hz - 14kHz |
(±3.0dB) |
S/N (dB) | 50dB (MONO) |
Selectivity | - |
Stereo separation | 35dB (1kHz) |
AM | Frequency Range | 531kHz - 1611kHz |
(Frequency step) | (9kHz) |
Usable sensitivity | 99μV(40dBμ) |
Video | Color system of external video input | NTSC/ PAL |
External video input level (Mini jacks) | 1.0Vp-p / 75 Ohms |
External audio max input level (RCA jacks) | 1.5V / 25k Ohms |
Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms |
Audio | Maximum Power Output (Front&Rear) | 45Wx4 |
Full Bandwidth Power | 21Wx4 |
(at less than 1%THD) |
Output frequency band | 20 - 20,000Hz |
Preout level (V) | 2.0V / 10k Ohms |
Preout impedance (Ω) | 1.4k Ohms |
Speaker Impedance (Ω) | 4-8 Ohms |
General | Operating voltage | 12V DC Car Battery |
Installation Dimensions WxHxD | 178 x 100 x 75 (mm) |
Weight Main unit | 1.1 kg |
