HELIX-CI3-C100.2FM-S3

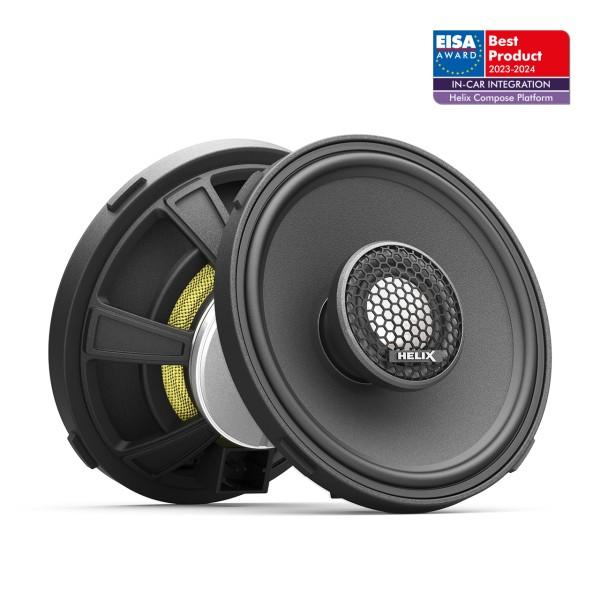

Sistema de altavoces coaxiales de alto rendimiento de 4''/100 mm con impedancia de 3 Ω, tweeter de titanio y tecnología FlexMount Descripción del producto Technical data Power handling RMS / Max. P 80 / 120 Watts Frequency response 100 Hz - 25,000 Hz Impedance Z 3 Ω Sensitivity SPL 91 dB @ 2.83V / 1m 87 dB @ 1W / 1m Outer diameter ø 98.0 mm / 3.86” Installation diameter ø 89.0 mm / 3.50” Installation depth 30.0 mm / 1.18” Midrange Impedance Z 3 Ω DC resistance Re 3.0 Ω Resonance frequency Fs 137 Hz Mechanical Q factor Qms 4.37 Electrical Q factor Qes 0.78 Total Q factor Qts 0.66 Compliance Cms 456 μm/N Equivalent air volume Vas 2.1 L Force factor B*l 3.2 Tm Cone area Sd 57 cm2 Moving mass Mms 3.0 g Mechanical resistance Rms 0.58 kg/s Voice coil diameter ø 25 mm Voice coil winding height 4.8 mm Max. linear excursion Xmax +/- 2.0 mm Tweeter Voice coil diameter ø 20 mm Features Tweeter Titanium dome and neodymium magnet Midbass Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100 Crossover Integrated, 6 dB highpass Compatibility FlexMount100 FlexConnect inlays Scope of delivery 2 x Ci3 C100.2FM-S3 2 x Universal FlexMount100 (with standard 4-point mounting) 2 x FlexConnect inlay A 2 x Universal connection cable 1 x Mounting material ENLACE https://www.audiotec-fischer.de/en/helix/speakers/compose/i3/ci3-c100-2fm-s3
