HELIX-AMPLIFY-206-DSP

Name: HELIX-AMPLIFY-206-DSP
Brand: Helix
SKU: 11724051
Price: 599.00 EUR
Availability: InStock

Producto Disponible - (Imp. Incluidos)

Costes de envío Ver descripción

Marca: Helix

Amplificador muy compacto de 5/6 canales con plataforma DSP y ACO de 8 canales

Categoría: Amplificador 6 canales | Tags: | Comentarios

Power RMS ≤ 1% THD+N	@ 14.4 V
- @ 4 Ohms	6 x 100 Watts
- @ 2 Ohms	6 x 190 Watts
- @ 1 Ohm	-
- bridged @ 4 Ohms	3 x 380 Watts
- bridged @ 2 Ohms	-
Max. output power per channel*	Up to 240 Watts RMS @ 2 Ohms Up to 480 Watts RMS @ 4 Ohms bridged
Amplifier technology	Class D

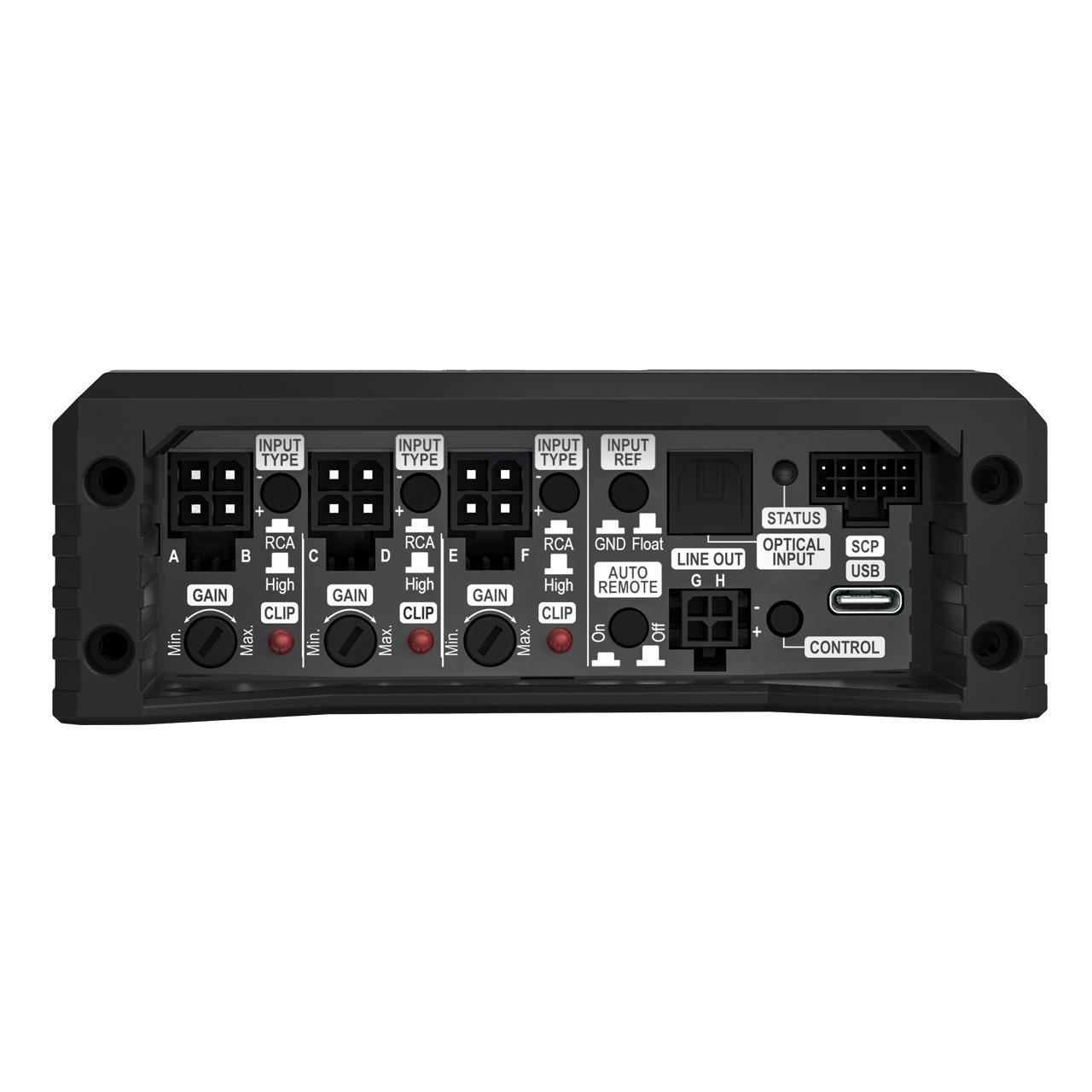

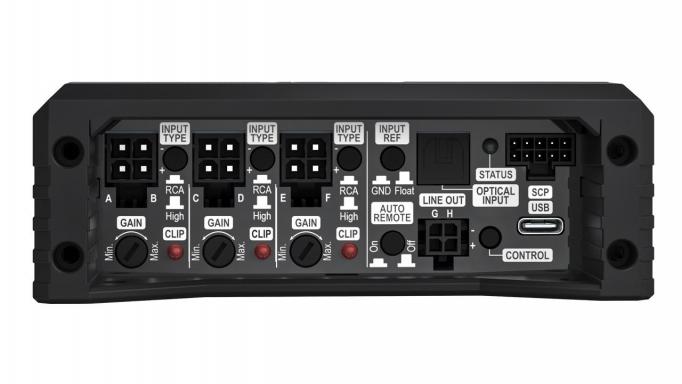

Inputs	6 x RCA / Cinch or 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 2 x Remote In
Input sensitivity	RCA / Cinch:1 - 8 Volts Highlevel: 2 - 16 Volts
Input impedance	RCA / Cinch 4,8 kOhms Highlevel 9 - 33 Ohms or 20 kOhms with ADEP.3
Outputs	6 x Speaker output 2 x RCA / Cinch 1 x Remote Out
Output voltage RCA / Cinch	8 Volts
Frequency response	20 Hz - 22,000 Hz
DSP resolution	64 Bit
DSP power	1 x 295 MHz (1.2 billion MAC operations/second)
Sampling rate	48 kHz
DSP type	1 x Audio signal processor
Signal converters	A/D: BurrBrown 24 Bit D/A: AKM 24 Bit
Signal-to-noise ratio (A-weighted)	Analog input: 99 dB @ full power Digital input: 102 dB @ full power
Distortion (THD @ 1 kHz, 1 W into 4 Ohms)	< 0.005 %
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms)	< 0.02 %
Distortion (THD @ 100 Hz, 1 W into 4 Ohms)	-
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms)	-
Damping factor	70
Operating voltage	10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Power rating	DC 12 V ⎓ 93 A max.
Idle current	1,100 mA
Max. remote output current	500 mA
Operating temperature range	-40 °C to +70 °C
Fuse	3 x 25 A LP-Mini-fuse (APS)
Additional features	ADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor
Dimensions (H x W x D)	40 x 263 x 114 mm / 1.58 x 10.35 x 4.49”
