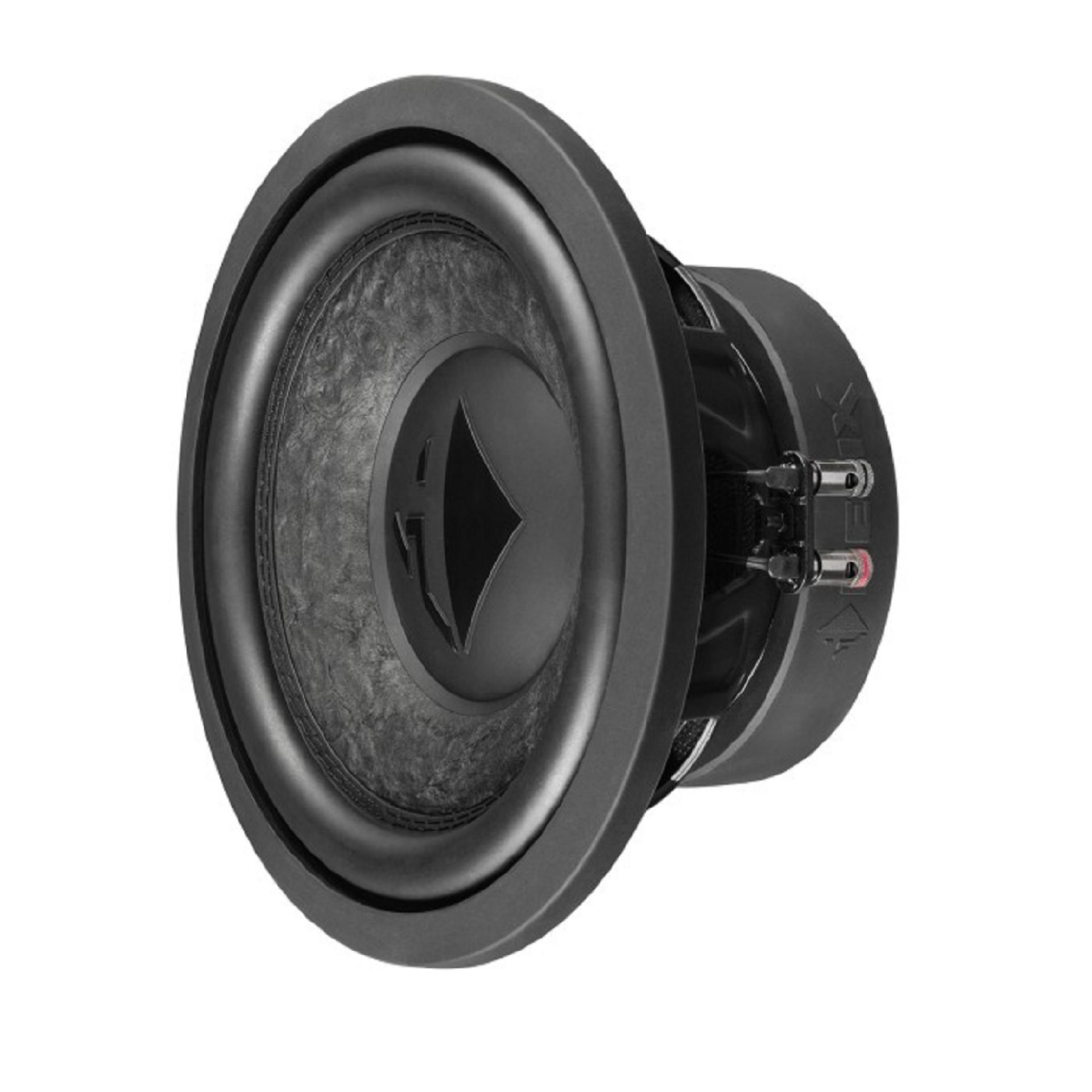

HELIX-IK-W10-SVC2

Altavoz de subgraves de 250 mm / 10'' con bobina móvil de 1 x 2 ohmios para cajas compactas Technical data IK W10-SVC2 – 1 x 2 Ohms Power handling RMS / max. P 300 / 600 Watts Impedance Z 1 x 2 Ω DC resistance Re 1 x 2.0 Ω Resonance frequency Fs 32 Hz Mechanical Q factor Qms 5.09 Electrical Q factor Qes 0.45 Total Q factor Qts 0.41 Compliance Cms 159 μm/N Equivalent air volume Vas 25 L Force factor B*I 12.1 Tm Sensitivity SPL 93.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m Cone area Sd 333 cm² Moving mass Mms 126 g Cone material Hand-scooped paper cone Mechanical resistance Rms 6.25 kg/s Voice coil diameter ø 50.8 mm Voice coil winding height 24 mm Max. linear excursion Xmax +/- 8.0 mm Outer diameter ø 262 mm / 10.31" Installation diameter ø 232 mm / 9.13" Installation depth 126 mm / 4.96" Recommended enclosure volumes Sealed box Net volume 15 L Lower limiting frequency (-3dB) 50 Hz Recommended DSP settings “Self-Define” Highpass: 38 Hz / Q = 1.4; EQ Filter: 95 Hz / Q = 1.0 / -3 dB Vented box Net volume 21 L Port diameter ø 70 mm / 2.76" Port area 38 cm² Port length 32 cm / 12.6" Port tuning frequency Fb 36 Hz Lower limiting frequency (-3dB) 36 Hz Recommended DSP settings “Self-Define” Highpass: 35 Hz / Q = 1.0; EQ Filter: 100 Hz / Q = 0.7 / -2 dB Scope of delivery 1 x Subwoofer HELIX IK W10-SVC2 1 x Grille 1 x Gasket 1 x Data sheet ENLACE https://www.audiotec-fischer.de/en/helix/subwoofers/ik-s10
