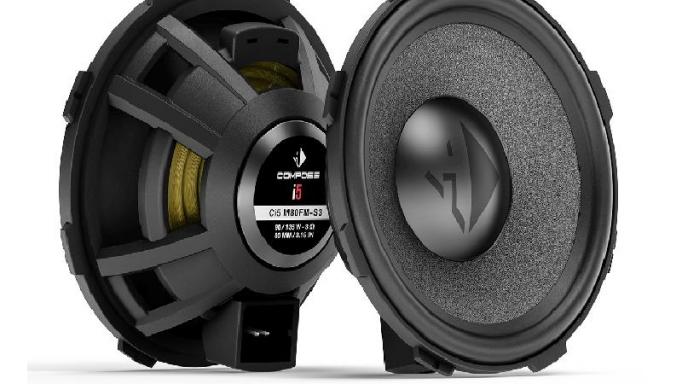

HELIX-CI5-M80FM-S3

Altavoz de rango medio avanzado de 3,15”/80 mm con impedancia de 3 Ω, tecnologia FlexMount80, cono de papel recubierto de silicona Power handling RMS / Max. P 90 / 135 Watts Impedance Z 3 Ω DC resistance Re 3.1 Ω Frequency response 200 Hz - 6,000 Hz Resonance frequency Fs 156 Hz Mechanical Q factor Qms 3.68 Electrical Q factor Qes 0.75 Total Q factor Qts 0.63 Compliance Cms 407 µm/N Equivalent air volume Vas 0.7 L Force factor B*I 3.2 Tm Sensitivity SPL 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m Cone area Sd 36 cm² Moving mass Mms 2.6 g Cone material Silicon coated paper cone Mechanical resistance Rms 0.68 kg/s Voice coil diameter ø 20 mm Voice coil winding height 7 mm Max. linear excursion Xlin +/- 2.5 mm Max. mechanical excursion Xmax +/- 4.5 mm Outer diameter ø 78.5 mm / 3.09" Outer diameter with universal mounting ring ø 88.9 mm / 3.50" Installation diameter ø 69.5 mm / 2.74" Installation depth 30.2 mm / 1.19" Features FlexConnect terminal, powerful push-pull neodymium magnet system, FlexMount80
