HELIX-AMPLIFY-206-DIRECT

Name: HELIX-AMPLIFY-206-DIRECT
Brand: Helix
SKU: 11724047
Price: 359.00 EUR
Availability: InStock

Producto Disponible - (Imp. Incluidos)

Costes de envío Ver descripción

Marca: Helix

Amplificador muy compacto de 5/6 canales con entrada DirectDSP “hecho para HELIX DSP”

Categoría: Amplificador 6 canales | Tags: | Comentarios

Power RMS ≤ 1% THD+N @ 14.4 V
- @ 4 Ohms	6 x 100 Watts
- @ 2 Ohms	6 x 190 Watts
- @ 1 Ohm	-
- bridged @ 4 Ohms	3 x 380 Watts
- bridged @ 2 Ohms	-
Max. output power per channel*	Up to 240 Watts RMS @ 2 Ohms Up to 480 Watts RMS @ 4 Ohms bridged
Amplifier technology	Class D

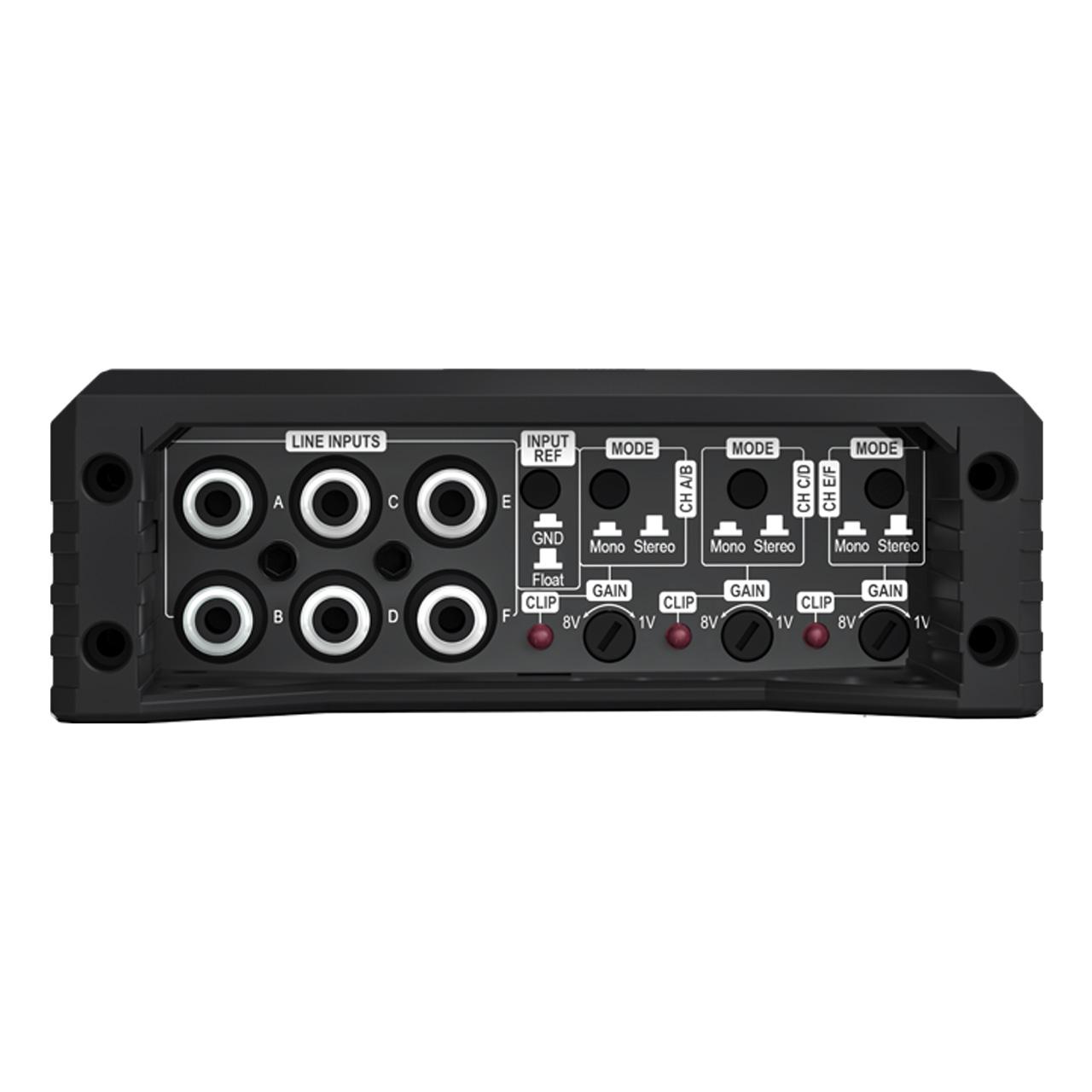

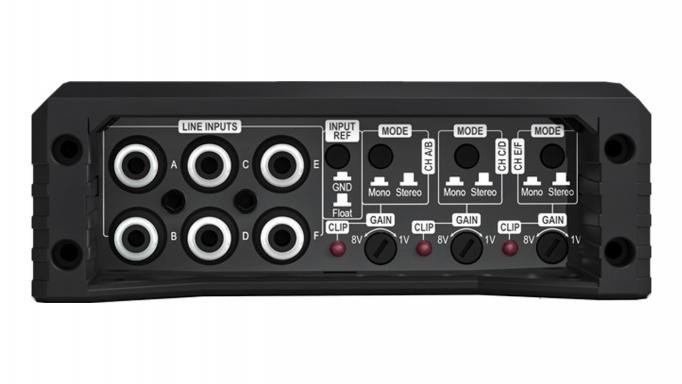

Inputs	6 x RCA / Cinch 1 x Remote In
Input sensitivity	1 - 8 Volts
Input impedance	6 kOhms
Outputs	6 x Speaker output
Output voltage RCA / Cinch	-
Signal converter for digital input	-
Frequency response	10 Hz - 22,000 Hz
Bass boost	-
Highpass	-
Lowpass	-
Bandpass	-
Subsonic	-
Phase	-
Slope high- / lowpass	-
Slope subsonic	-
Slope subsonic / lowpass	-
Signal-to-noise ratio (A-weighted)	103 dB @ full power
Distortion (THD @ 1 kHz, 1 W into 4 Ohms)	< 0.003%
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms)	< 0.015 %
Distortion (THD @ 100 Hz, 1 W into 4 Ohms)	-
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms)	-
Damping factor	70
Operating voltage	10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current	1,100 mA
Fuse	3 x 25 A LP-Mini-fuse (APS)
Power rating	DC 12 V ⎓ 93 A max.
Operating temperature range	-40 °C to +70 °C
Additional features	Start-Stop capability, Clipping LED, DirectDSP inputs
Dimensions (H x W x D)	40 x 263 x 114 mm / 1.58 x 10.35 x 4.49”
