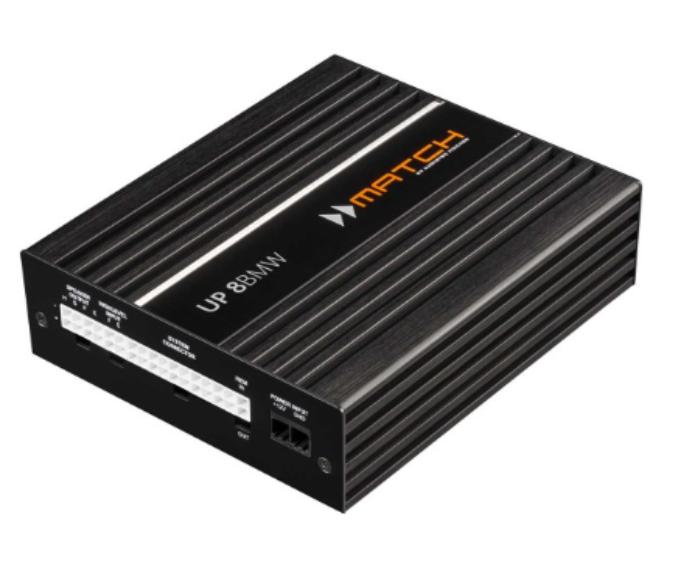

MATCH-UP-8BMW

Output power RMS

- @ 4 Ohms

Channels A - F: 6 x 65 Watts

- @ 2 Ohms

-

- @ 1 Ohm

-

- bridged @ 4 Ohms

-

- bridged @ 2 Ohms

-

- Subwoofer output @ 4 Ohms

Kanal G - H: 2 x 90 Watts

- Subwoofer output @ 2 Ohms

Kanal G - H: 2 x 160 Watts

Amplifier technology

Class GD

Inputs

6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x MEC
1 x Remote In

Input sensitivity

2.8 - 11 Volts

Input impedance RCA / Cinch

-

Input impedance highlevel

9 - 33 Ohms with ADEP.3

Outputs

8 x Speaker output
1 x RCA / Cinch
1 x Remote Out

Output voltage RCA / Cinch

3 Volts RMS

Frequency response

10 Hz - 22,000 Hz

DSP resolution

64 Bit

DSP power

295 MHz (1.2 billion MAC operations/second)

Sampling rate

48 kHz

DSP type

Audio signal processor

Signal converters

A/D: BurrBrown
D/A: BurrBrown

Signal-to-noise ratio digital input

106 dB (A-weighted)

Signal-to-noise ratio analog input

104 dB (A-weighted)

Distortion (THD)

< 0.03 %

Damping factor

> 100

Operating voltage

10.5 - 17 Volts (max. 5 sec. down to 6 Volts)

Power rating

DC 12 V ⎓ 40 A max.

Idle current

380 mA

Max. remote output current

500 mA

Operating temperature range

-40° C to +70° C

Fuse

1 x 25 A LP-Mini-fuse (APS)

Additional features

Class GD technology with dynamically controlled
power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out

Dimensions (H x W x D)

46 x 130 x 153 mm /
1.81 x 5.12 x 6.02"
