No Disponible
![HELIX-CI5-T25FM-CA [1]](https://cdn.palbincdn.com/users/29339/images/ci5-t25fm-ca-helix-compose-i5-tw-1-1744046524.jpg)

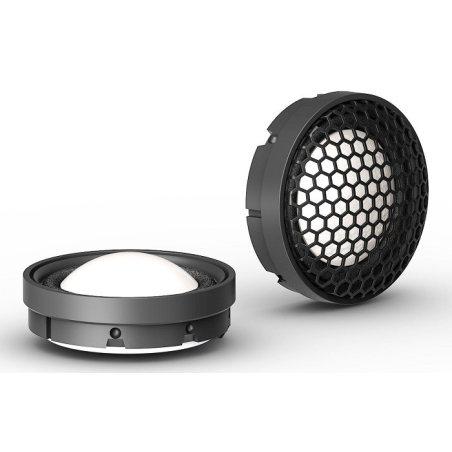

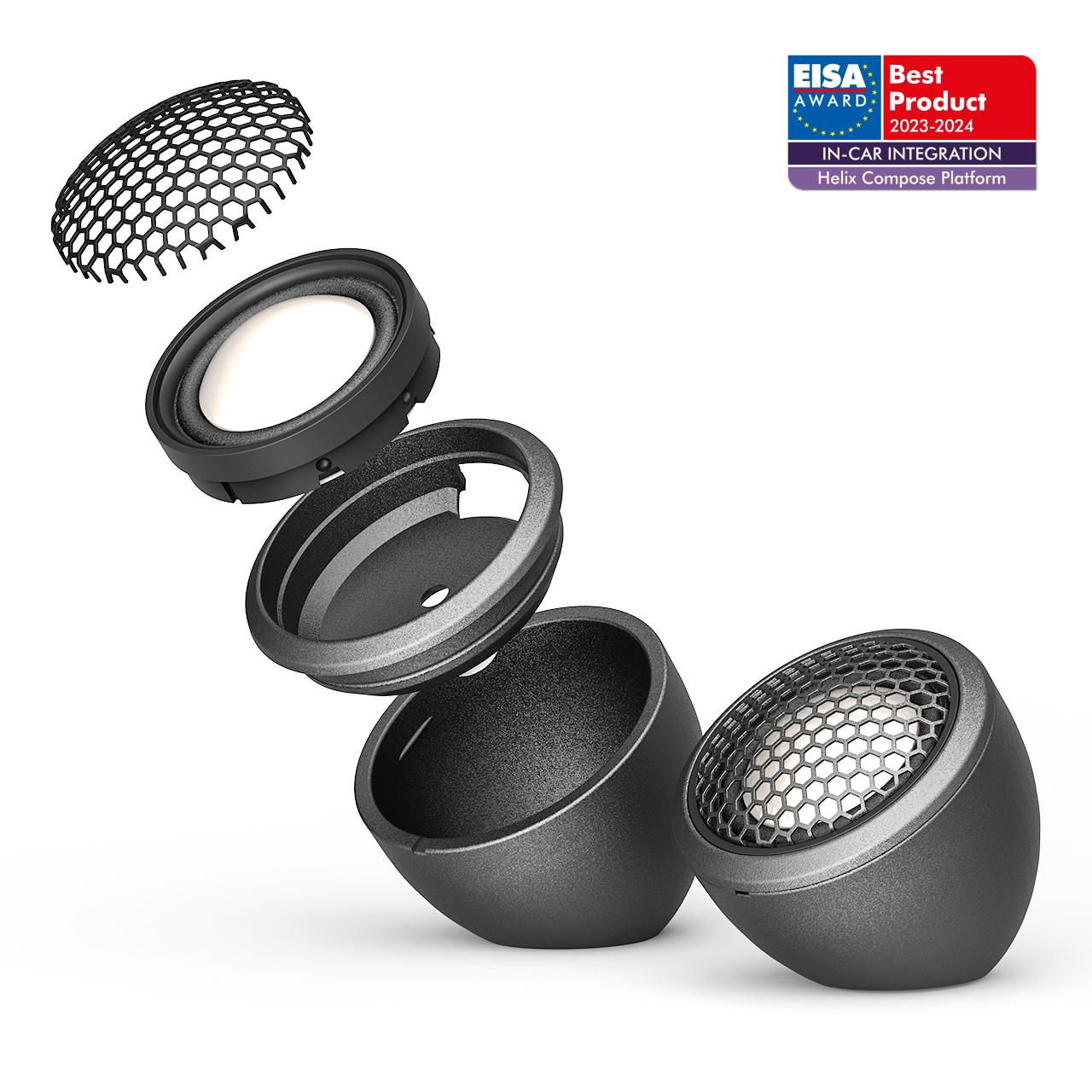

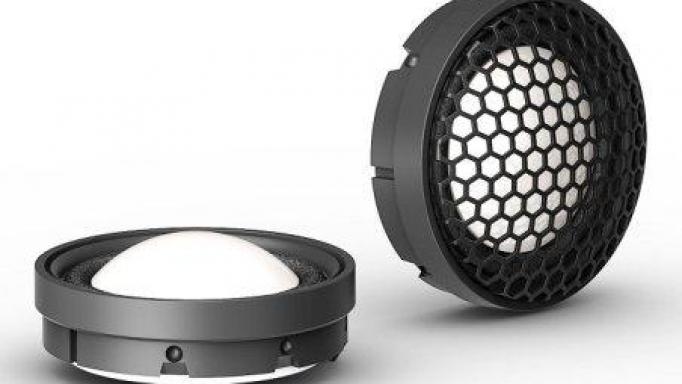

HELIX-CI5-T25FM-CA
Tweeter de cúpula de titanio de alto rendimiento de 25 mm / 1” con tecnología FlexMount20 e imán de neodimio
Technical data
| Impedance | Z | 4 Ω |
| DC resistance | Re | 3.2 Ω |
| Frequency response | 2,000 Hz - 25,000 Hz | |
| Resonance frequency | Fs | 1800 Hz |
| Sensitivity | SPL | 94.0 dB @ 2.83V / 1m 91.0 dB @ 1W / 1m |
| Voice coil diameter | Ø | 25 mm |
| Cone material | Aluminum with ceramic coating | |
| Outer diameter | 40 mm / 1.57" | |
| Installation diameter | 38 mm / 1.50" | |
| Installation depth | 11.7 mm / 0.46" | |
| Recommended crossover frequencies for the highpass | ||
| Slope | Minimum crossover frequency | |
| 6 dB/Octave | > 4,000 Hz | |
| 12 dB/Octave | > 3,000 Hz | |
| 24 dB/Octave | > 2,500 Hz | |
Compatibility
- FlexMount25
- WireKits
Scope of delivery
2 x Ci5 T25FM-CA
2 x Tweeter flush mount
2 x Tweeter pod
2 x Mounting material
1 x Instruction manual
ENLACE:
https://www.audiotec-fischer.de/en/helix/speakers/compose/i5/ci5-t25fm-ca
