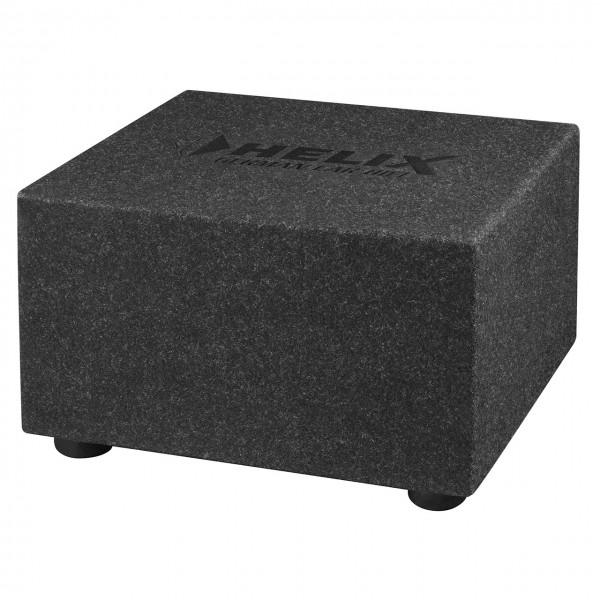

HELIX-K-8E.2

Subgrave Downfire en una caja ventilada compacta con chasis de 8'' y una impedancia variable de 2x2 ohmios, 1x4 ohmios o 1x1 ohmios

Features

8“ / 200 mm high excursion woofer with hand-scooped paper cone and dual voice coil

Downfire enclosure technology for perfect protection of the speaker and ideal bass dispersion in the vehicle

Sturdy carpet surface with embroidered HELIX logo

Pluggable screw terminal for a quick and safe installation or removal

Voice coil impedance configurable via connection terminal – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm

Compact enclosure dimensions

Technical data

Power RMS / max.

P

300 / 600 Watts

Impedance

z

2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω

Max. linear excursion

Xmax

+/- 8.0 mm

Port tuning frequency

Fb

43 Hz

Sensitivity 1 W / 1 m

SPL

86 dB

Dimensions (H x W x D)

184 x 310 x 285 mm /

7.2 x 12.2 x 11.2”

Recommended DSP settings

Recommended "self-define" highpass filter with 44 Hz cut-off frequency and Q = 1.6;

additional EQ filter 115 Hz / Q = 0.9 / -3.5 dB

Scope of delivery

1 x Downfire enclosure subwoofer HELIX K 8E.2

1 x Data sheet
