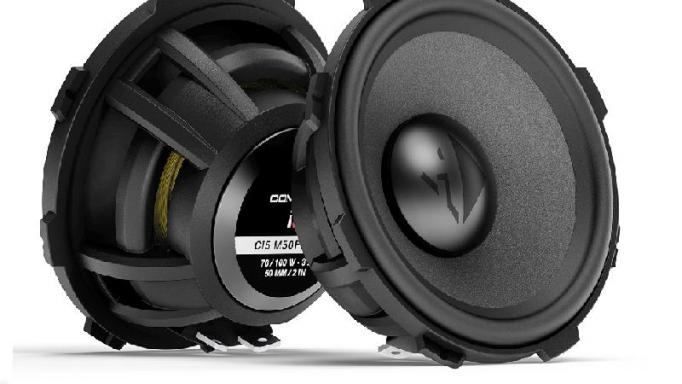

HELIX-CI5-M50FM-S3

Altavoz de banda ancha de 2”/50 mm con impedancia de 3 Ω, tecnologia FlexMount50, cono de papel recubierto de silicona y amplia respuesta de frecuencia de 300 20000 Hz Technical data Power handling RMS / Max. P 70 / 100 Watts Impedance Z 3 Ω DC resistance Re 3.1 Ω Frequency response 300 Hz - 20,000 Hz Resonance frequency Fs 240 Hz Mechanical Q factor Qms 3.09 Electrical Q factor Qes 0.80 Total Q factor Qts 0.68 Compliance Cms 300 µm/N Equivalent air volume Vas 0.16 L Force factor B*I 2.8 Tm Sensitivity SPL 89 dB @ 2.83 V / 1m 85 dB @ 1W / 1m Cone area Sd 19.6 cm² Moving mass Mms 1.43 g Cone material Silicon coated paper cone Mechanical resistance Rms 0.71 kg/s Voice coil diameter ø 20 mm Voice coil winding height 7 mm Max. linear excursion Xlin +/- 2.5 mm Max. mechanical excursion Xmax +/- 3.5 mm Outer diameter ø 59.8 mm / 2.34" Outer diameter with universal mounting ring ø 70.0 mm / 2.75" Installation diameter ø 50.9 mm / 2.00" Installation depth 25.2 mm / 0.99" Features Powerful push-pull neodymium magnet system, FlexMount50
